Home > Products > Model JHQ C

Model JHQ-C

Model JHQ-C

Product Item：
Order online：

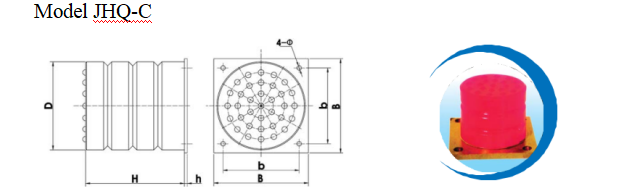

JHQ-C 1.png

Number	Model	D	H	M	h	Buffer Capacity	Buffer Stroke	End Force	Total Weight
Number	Model	mm	mm	mm	mm	E kNm	S mm	F kN	kg
1	JHQ-C-1	65	80	8	100	70	12	0.265	60
2	JHQ-C-2	80	80	8	115	85	12	0.400	60
3	JHQ-C-3	80	100	8	115	85	12	0.502	75
4	JHQ-C-4	100	80	8	130	100	14	0.628	60
5	JHQ-C-5	100	100	8	130	100	14	0.785	75
6	JHQ-C-6	100	125	8	130	100	14	0.980	90
7	JHQ-C-7	125	100	10	165	130	14	1.222	75
8	JHQ-C-8	125	125	10	165	130	14	1.533	94
9	JHQ-C-9	125	160	10	165	130	14	1.960	120
10	JHQ-C-10	160	125	10	200	160	18	2.512	94
11	JHQ-C-11	160	160	10	200	160	18	3.215	120
12	JHQ-C-12	160	200	10	200	160	18	4.019	150
13	JHQ-C-13	200	160	12	250	200	18	5.024	120
14	JHQ-C-14	200	200	12	250	200	18	6.280	150
15	JHQ-C-15	200	250	12	250	200	18	7.850	188
16	JHQ-C-16	250	200	12	320	250	22	9.810	150
17	JHQ-C-17	250	250	12	320	250	22	12.266	188
18	JHQ-C-18	250	320	12	320	250	22	15.700	240
19	JHQ-C-19	320	250	14	400	315	22	20.096	188
20	JHQ-C-20	320	320	14	400	315	22	25.732	240
21	JHQ-C-21	320	400	14	400	315	22	32.154	300
22	JHQ-C-22	320	450	14	400	315	22	36.17	337
23	JHQ-C-23	400	450	14	460	370	22	56.5	337
24	JHQ-C-24	400	300	14	460	370	22	37.7	225
25	JHQ-C-25	430	450	14	460	370	22	65.3	337
26	JHQ-C-26	430	480	14	460	370	22	69.7	360
27	JHQ-C-27	430	500	14	460	370	22	72.6	375
28	JHQ-C-28	500	450	14	640	500	24	88.3	337
29	JHQ-C-29	800	1000	16	880	800	26	502.3	750
